HEB BEAMS
Standards: UNI 5397 - EN 10025-10034
| HEB BEAMS Standards: UNI 5397 - EN 10025 - EN 10034 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| PROFILE | Weight al m. kg | Sez. cm2 | Wx cm3 | Jx cm4 | |||||

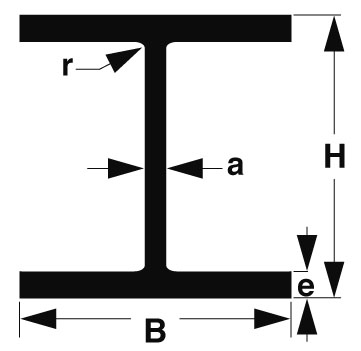

| HE | H | B | a | e | r | ||||
| 100 | 100 | 100 | 6,0 | 10,0 | 12 | 20,4 | 26,0 | 90 | 450 |
| 120 | 120 | 120 | 6,5 | 11,0 | 12 | 26,7 | 34,0 | 144 | 864 |
| 140 | 140 | 140 | 7,0 | 12,0 | 12 | 33,7 | 43,0 | 216 | 1509 |
| 160 | 160 | 160 | 8,0 | 13,0 | 15 | 42,6 | 54,3 | 311 | 2492 |
| 180 | 180 | 180 | 8,5 | 14,0 | 15 | 51,2 | 65,3 | 426 | 3831 |
| 200 | 200 | 200 | 9,0 | 15,0 | 18 | 61,3 | 78,1 | 570 | 5696 |
| 220 | 220 | 220 | 9,5 | 16,0 | 18 | 71,5 | 91,0 | 736 | 8091 |
| 240 | 240 | 240 | 10,0 | 17,0 | 21 | 83,2 | 106 | 938 | 11259 |
| 260 | 260 | 260 | 10,0 | 17,5 | 24 | 93,0 | 118 | 1150 | 14919 |
| 280 | 280 | 280 | 10,5 | 18,0 | 24 | 103 | 131 | 1380 | 19270 |
| 300 | 300 | 300 | 11,0 | 19,0 | 27 | 117 | 149 | 1680 | 25166 |
| 320 | 320 | 300 | 11,5 | 20,5 | 27 | 127 | 161 | 1930 | 30823 |
| 340 | 340 | 300 | 12,0 | 21,5 | 27 | 134 | 171 | 2160 | 36656 |
| 360 | 360 | 300 | 12,5 | 22,5 | 27 | 142 | 181 | 2400 | 43193 |
| 400 | 400 | 300 | 13,5 | 24,0 | 27 | 155 | 198 | 2880 | 57680 |
| 450 | 450 | 300 | 14,0 | 26,0 | 27 | 171 | 218 | 3550 | 79890 |
| 500 | 500 | 300 | 14,5 | 28,0 | 27 | 187 | 239 | 3550 | 107200 |
| 550 | 550 | 300 | 15,0 | 29,0 | 27 | 199 | 254 | 4970 | 136700 |
| PUTRES HEB - Tableau des charges nettes uniformément réparties pour σ = 1600 kg / cm² | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance between les supports en mètres | ||||||||||||||||
| H | 2.50 | 3.00 | 3.50 | 4.00 | 4.50 | 5.00 | 5.50 | 6.00 | 7.00 | 8.00 | 9.00 | 10.00 | 11.00 | 12.00 | 13.00 | 14.00 |
| 100 | 4557 | 3779 | 3220 | 2798 | 2468 | 2202 | 1982 | 1798 | - | - | - | - | - | - | - | - |
| 120 | 7306 | 6064 | 5173 | 4501 | 3976 | 3553 | 3204 | 2912 | 2446 | - | - | - | - | - | - | - |
| 140 | 10975 | 9115 | 7781 | 6777 | 5992 | 5361 | 4842 | 4406 | 3714 | 3186 | - | - | - | - | - | - |
| 160 | 15817 | 13142 | 11225 | 9782 | 8655 | 7749 | 7004 | 6379 | 5389 | 4635 | 4040 | 3555 | - | - | - | - |
| 180 | 21683 | 18022 | 15400 | 13427 | 11887 | 10650 | 9633 | 8781 | 7431 | 6406 | 5598 | 4941 | 4394 | - | - | - |
| 200 | 29031 | 24136 | 20631 | 17995 | 15937 | 14286 | 12928 | 11792 | 9994 | 8630 | 7555 | 6683 | 5958 | 5344 | - | - |
| 220 | 37504 | 31188 | 26666 | 23266 | 20613 | 18484 | 16735 | 15272 | 12958 | 11204 | 9824 | 8706 | 7778 | 6993 | 6317 | - |
| 240 | - | 39772 | 34013 | 29683 | 26306 | 23597 | 21372 | 19511 | 16570 | 14342 | 12592 | 11174 | 10000 | 9007 | 8154 | 7411 |
| 260 | - | 48786 | 41732 | 36428 | 32293 | 28975 | 26252 | 23975 | 20378 | 17656 | 15519 | 13790 | 12359 | 11151 | 10114 | 9212 |
| 280 | - | 59569 | 50108 | 43748 | 38790 | 34813 | 31550 | 28822 | 24513 | 21256 | 18700 | 16634 | 14925 | 13484 | 12249 | 1175 |
| 300 | - | 71327 | 53290 | 53292 | 47260 | 42423 | 38455 | 35138 | 29901 | 25944 | 22840 | 20334 | 18262 | 16516 | 15021 | 13722 |
| 320 | - | 81963 | 61250 | 61252 | 54326 | 48773 | 44218 | 40411 | 34402 | 29864 | 26306 | 23434 | 21061 | 19063 | 17352 | 15868 |
| 340 | - | 91755 | 68582 | 68584 | 60837 | 54626 | 49532 | 45276 | 38559 | 33488 | 29514 | 26308 | 23661 | 21432 | 19526 | 17873 |
| 360 | - | 101971 | 76130 | 76232 | 67628 | 60730 | 55074 | 50348 | 42892 | 37264 | 32855 | 29300 | 26365 | 23896 | 21785 | 19955 |
| 400 | - | 122412 | 91568 | 91540 | 81223 | 72953 | 66173 | 60510 | 51578 | 44840 | 39565 | 35314 | 31808 | 28860 | 26342 | 24161 |
| 450 | - | - | - | 112916 | 100208 | 90025 | 81678 | 72707 | 63717 | 55432 | 48950 | 43730 | 39428 | 35815 | 32731 | 30063 |
| 500 | - | - | - | - | 121185 | 108889 | 98812 | 90398 | 77137 | 67144 | 59330 | 53042 | 47863 | 43516 | 39809 | 36605 |
| 550 | - | - | - | - | 140473 | 126237 | 114571 | 104883 | 89487 | 77928 | 68893 | 61626 | 55644 | 50625 | 46348 | 42654 |
